L-Shape Layout: The Guide to Modern Warehouse Logistics and Hall Planning

In the world of logistics real estate, the shape of the hall largely dictates the efficiency of the processes inside. In addition to the classic I-Shape (flow) and U-Shape layouts, the L-Shape layout (the L-Shape) has established itself as a clever solution for specific intralogistics challenges. But when is an L-shaped hall the best choice for contract logistics companies? And how does this architecture affect the material flow and costs?

What is an L-shape layout in logistics real estate?

The L-Shape layout describes a logistics hall whose floor plan resembles the letter "L". The material flow is not linear from A to B (as with the I-Shape) and does not return parallel to the origin (as with the U-Shape). Instead, the flow of goods is directed through the hall at a 90-degree angle. Goods receipt and goods shipped are usually located at the two outer ends of the L-legs or are arranged in the area of the inner angle, which greatly equalizes traffic at the depot (yard).

The flow of materials: Thinking outside the box

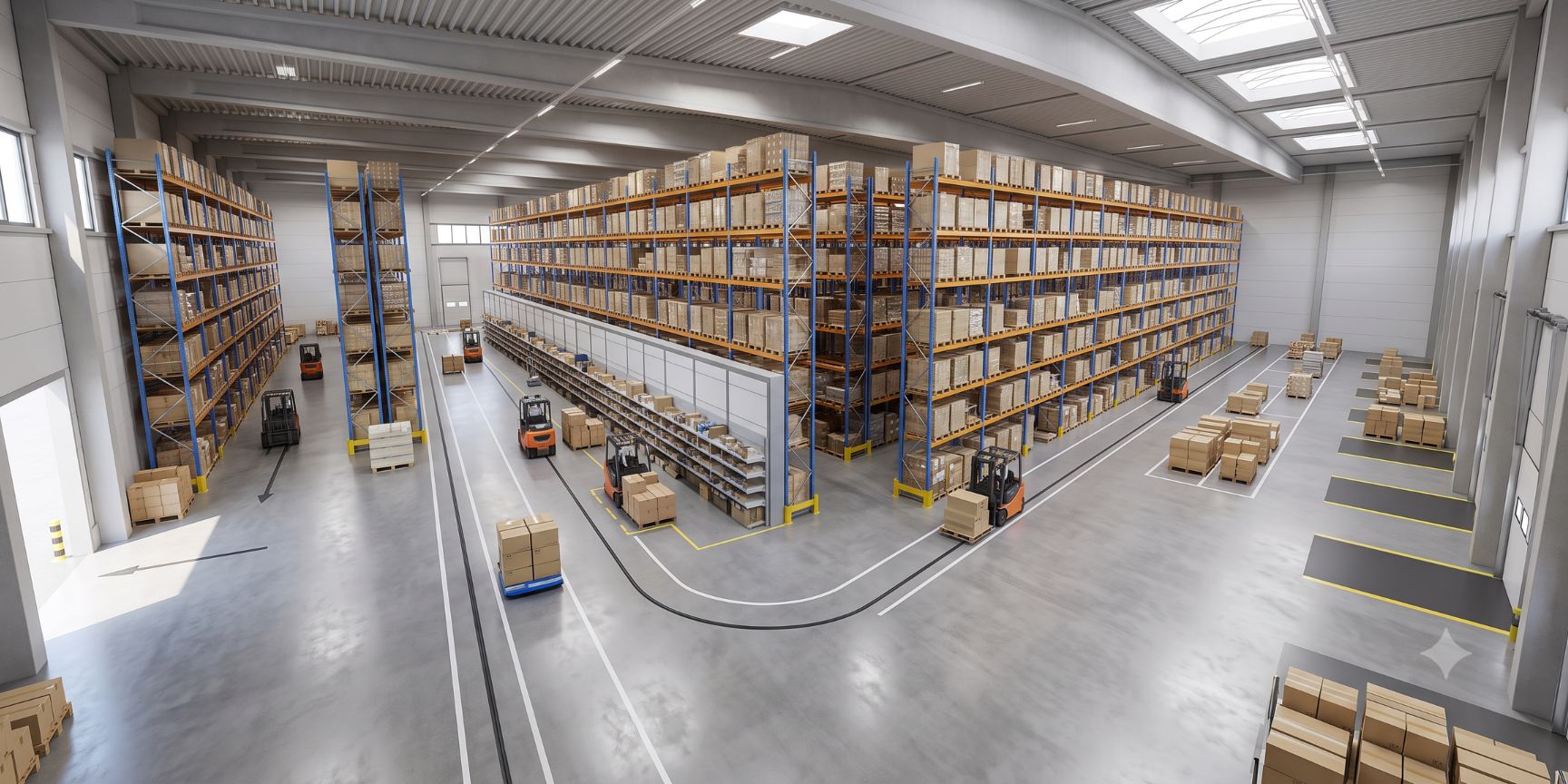

Contract logistics and warehouse logistics are all about smooth transitions. In an L-shaped hall, the goods are unloaded at the loading ramp of the first leg. From there, it flows through the pre-zone into the main warehouse (for example, a high-bay warehouse in the corner area) and then via picking and packaging zones (value-added services) into the second leg, where the goods issue takes place. This 90-degree deflection allows excellent physical separation of uncontrolled incoming and ready-to-ship raw materials.

Advantages of the L-shape for contract logistics

Why do logistics service providers choose an L-layout? The answers usually lie in the specialization of the supply chain:

• Strict separation of Goods Received and Goods Shipped: Due to the arrangement on different legs, the paths of delivering and picking up trucks do not cross. This minimizes the risk of accidents on the farm and prevents traffic jams at peak times.
• Perfect for multi-temperature zones: The L-shape is ideal for structurally and thermally separating different climate zones (e.g. cold store in the short leg, dry storage in the long leg).

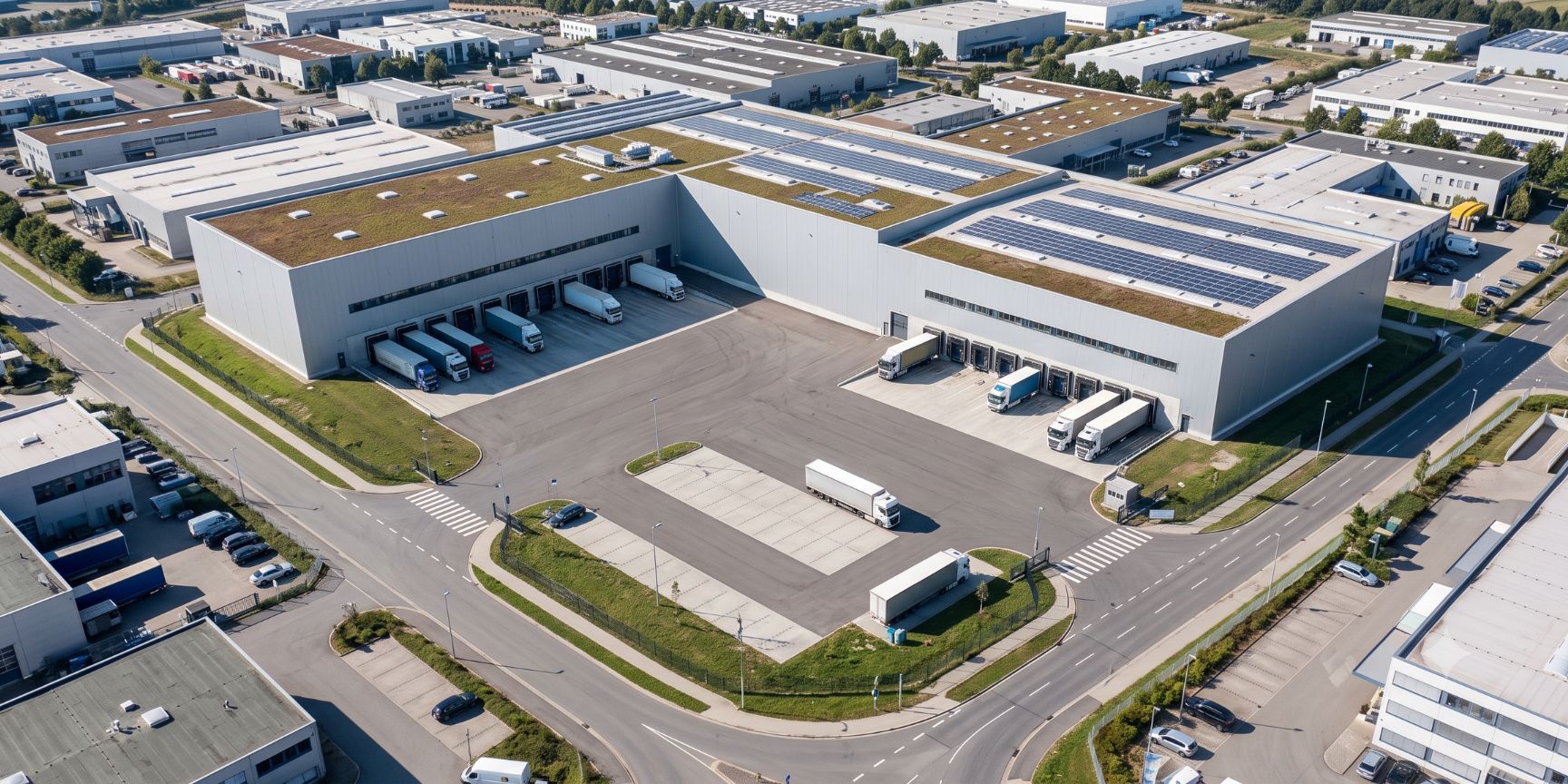

• Property optimization: Often, the property geometry (e.g. corner plots in densely built-up commercial areas) is the main reason for this construction method. The L-shape gets the maximum of usable hall space out of asymmetrical plots.

Challenges and disadvantages of architecture

Where there is light, there is also shadow. The L-shape poses structural and operational challenges for operators of logistics properties. The notorious "blind spot" in the inner corner of the hall requires extremely precise intralogistics planning, as forklifts or automated guided vehicles (AGVs) have to accept longer distances and manoeuvring manoeuvres here. In addition, the ratio of exterior wall to interior surface is higher in an L-shaped hall than in a pure square. This can lead to slightly higher construction costs and a higher energy requirement for heating.

Facts, figures, data: The L-Shape in an efficiency check

In practice, it has been shown that L-shaped halls can often use the available space 85 to 90% as efficiently as a perfectly symmetrical U-shape layout – provided that the racking systems are intelligently integrated into the 90-degree bend. Another fact from logistics practice: By equalizing truck traffic to two separate yards, the downtime (turnaround times) of the vehicles at the ramps can be reduced by up to 15%, as maneuvers run much more smoothly.

L-Shape vs. U-Shape: The Differences at a Glance

While the U-Shape layout bundles personnel and resources in the middle of the hall (central control center, common pre-zones), the L-Shape layout decentralizes the processes. For the operator, this means that he often needs two separate teams for incoming and outgoing goods. The U-shape is unbeatable for high cross-docking content, while the L-shape shines when goods need to be thoroughly processed, assembled or stored for a long time before they leave the hall again.

Frequently Asked Questions (FAQ)

Question: Are L-shape halls popular with investors?

Answer: They are a solid solution if the property requires it. Since they can be easily divided into two separate fire compartments or rental areas (per leg), they offer quite a high level of third-party usability, which minimizes the risk of vacancy for the landlord.

Question: Can an L-shaped logistics property be automated at a later date?

Answer: Yes. However, conveying technologies (such as roller conveyors or sorters) must be precisely adapted to the 90-degree bend. However, modern AI-supported warehouse management systems (WMS) and robots today navigate through asymmetrical hall structures without any problems.

Question: For which industries is the L-shape particularly lucrative?

Answer: Pharmaceutical logistics and the food industry in particular will benefit. The strict spatial separation prevents cross-contamination between raw materials in the input and finished products in the exit.

Conclusion: The flexible compromise for strong profiles

The L-Shape layout is much more than just an architectural emergency solution for winding properties. It is a strategic decision for logistics companies that place the highest demands on safety, temperature control and equalized truck traffic. Contract logistics specialists who are willing to compensate for travel times in the inner corner area through clever warehouse planning or automation will receive a highly functional and safe logistics machine.
